How to Fix Project Zomboid Build 42 Crash on Startup (Java Heap Memory Fix)

To fix the Project Zomboid Build 42 crash on startup, open ProjectZomboid64.json in your game installation folder using Notepad. Locate the line “-Xmx3072m” inside the vmArgs array and change it to “-Xmx6144m” (for 16GB RAM) or “-Xmx8192m” (for 32GB RAM). Save the file and restart the game.

Project Zomboid Build 42 expands world rendering to 32 vertical levels and streams uncompressed high-resolution texture packs that overwhelm the default 3072 MB Java heap limit. When the Java Virtual Machine runs out of memory while compiling initial asset buffers, the process crashes to the desktop before reaching the main menu.

You can resolve this startup failure in two minutes by updating your memory configuration file without risking your character or world saves.

The 30-Second Diagnostic: Check console.txt for OutOfMemoryError

To verify your Build 42 crash is caused by memory exhaustion, navigate to C:\Users<YourUsername>\Zomboid\ and open console.txt. Scroll to the bottom of the log file. If you see java.lang.OutOfMemoryError: Java heap space or GC overhead limit exceeded, your crash is confirmed as a JVM memory limit.

Do not edit game files or delete caches until you verify the exact error string recorded during the crash. Inspecting the native execution log confirms whether your system suffered a memory crash, an OpenGL driver failure, or a corrupted script loop.

Follow these steps to locate and read your diagnostic log:

1. Press Windows Key + R on your keyboard to open the Run dialog box.
2. Type %USERPROFILE%\Zomboid into the field and press Enter to open your personal game data directory.
3. Locate the text document named console.txt at the root of the folder.
4. Right-click console.txt and open it using Notepad or any standard text editor.
5. Press Ctrl + End to jump directly to the bottom of the log file.
6. Review the final thirty lines of output for explicit termination warnings.

If your game terminated due to memory exhaustion, the log will output:

java.lang.OutOfMemoryError: Java heap space

You may also observe a garbage collector failure string reading:

java.lang.OutOfMemoryError: GC overhead limit exceeded

Immediately preceding these lines, the log will show the engine attempting to unpack compressed texture archives such as texturepack: loading B42ChunkCaching2x or loading Tiles2x.pack. When the allocated heap fills completely, the engine halts execution instantly.

The diagnostic table below maps observed error strings to their root causes and verified solutions.

Build 42 Crash Diagnostic Matrix

This table maps specific error strings from console.txt to their underlying system causes and required fixes.

Log Error String or Symptom	Root Cause Category	Primary Point of Failure	Targeted Resolution
java.lang.OutOfMemoryError: Java heap space	JVM Memory Allocation	Asset decompression during initial startup	Increase -Xmx value inside ProjectZomboid64.json
java.lang.OutOfMemoryError: GC overhead limit exceeded	Heap Saturation	Garbage collector running continuously with no freed RAM	Expand heap allocation to at least 6144 MB
EXCEPTION_ACCESS_VIOLATION in nvoglv64.dll or atig6pxx.dll	Graphics Driver Crash	OpenGL rendering pipeline and depth buffer initialization	Clean install GPU drivers using DDU and disable overlays
LuaManager: error loading file or state desync	Mod Script Collision	Legacy Build 41 mod active in Build 42 environment	Delete the Lua cache folder and disable outdated mods
Black screen on launch with background music playing	Display Resolution Lock	Outdated refresh rate or invalid display mode in options.ini	Delete options.ini to force default windowed parameters

Why Build 42 Crashes During Texture and Chunk Loading

Build 42 expands Project Zomboid’s world rendering from 8 to 32 vertical levels and implements high-resolution Tiles2x texture packs. Because the 64-bit client launcher defaults to an outdated 3072MB heap cap, the Java Virtual Machine runs out of memory while unpacking initial texture atlases.

The jump from Build 41 to Build 42 represents the most significant engine overhaul in the history of Project Zomboid. The rendering engine was rebuilt to support basements down to level -16 and skyscrapers up to level +16, requiring real-time depth sorting across thirty-two vertical planes.

To populate these complex vertical spaces, The Indie Stone replaced legacy sprite packs with uncompressed double-sized texture atlases. Assets like Tiles2x.pack, B42ChunkCaching2x.pack, and B42ChunkCaching2x.floor contain four times the pixel data of previous builds.

During startup, the game engine loads these textures into working memory while building internal chunk caches. This process requires substantial temporary memory headroom before assets can be transferred to the graphics card.

The client launcher binary (ProjectZomboid64.exe) continues to ship with a baseline memory cap of 3072 MB (-Xmx3072m). This 3 GB threshold was established years ago when the game utilized flat eight-level maps and lower-resolution textures.

In Build 42, loading the core assets pushes memory demand past 4200 MB within the first ten seconds of booting. When active memory hits the 3072 MB ceiling, the Java Virtual Machine cannot allocate space for the next texture array, causing an immediate crash to the desktop.

This crash occurs in system RAM managed by the Java runtime, not in video memory. Even systems equipped with high-end GPUs like the RTX 4090 will crash on startup if the Java heap limit remains locked at 3072 MB.

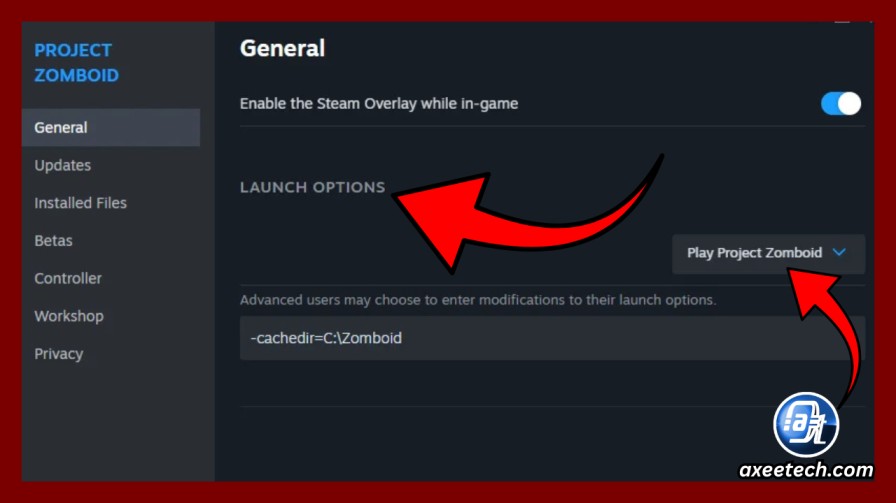

The Steam Launch Option Fallacy: Why -Xmx in Steam Does Nothing

Adding -Xmx6g or -maxMem to Steam Launch Options has zero effect on Project Zomboid. The native launcher ProjectZomboid64.exe ignores Steam launch arguments for JVM memory configuration, passing them only as in-game parameters. You must edit ProjectZomboid64.json directly to increase your Java heap size.

A persistent myth across community forums suggests that typing -Xmx6g or -Xmx8192m into the Steam Launch Options properties box allocates more memory to the game. This advice is fundamentally incorrect on Windows systems.

The executable that Steam launches is ProjectZomboid64.exe, which is a native compiled C++ bootstrap wrapper. It is not the Java runtime itself.

When ProjectZomboid64.exe initializes, it looks exclusively for an adjacent configuration file named ProjectZomboid64.json. It parses the JVM arguments contained within the "vmArgs" array inside that JSON file to build the Java environment.

Any command-line arguments entered into Steam Launch Options are passed directly into the game’s internal main(String[] args) method. The game interprets these as gameplay flags (such as -debug or -safemode), completely bypassing the Java Virtual Machine initialization engine.

Because the JVM starts before game code executes, runtime parameters like maximum heap size cannot be modified from inside the application. The Java environment launches with whatever memory cap is defined in the JSON file, regardless of what you entered into Steam.

Relying on Steam Launch Options leaves the game running at the default 3072 MB limit. To resolve memory crashes, you must edit the JSON configuration file directly on your storage drive.

Method 1: Edit ProjectZomboid64.json Memory Allocation (The Real Fix)

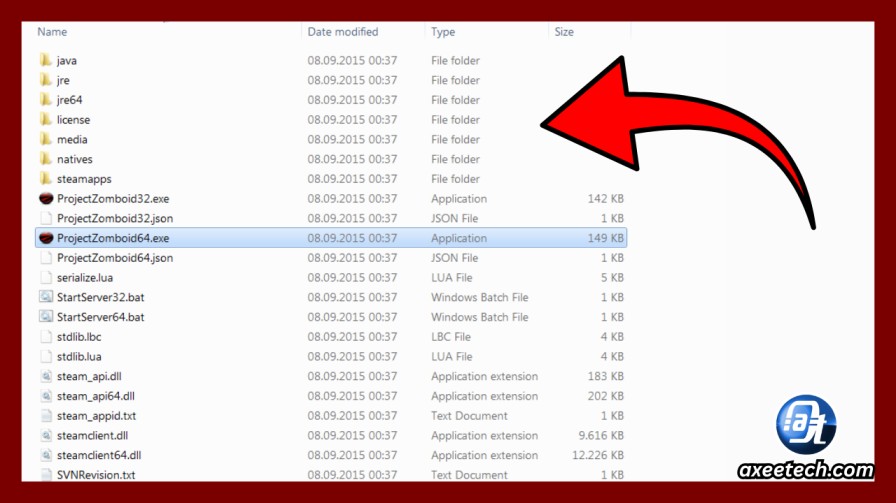

To allocate more RAM, navigate to Steam\steamapps\common\ProjectZomboid\ and open ProjectZomboid64.json with Notepad. Locate “-Xmx3072m” within the vmArgs array and replace it with your desired allocation, such as “-Xmx6144m”. Save the file with Ctrl + S and launch the game through Steam.

Editing ProjectZomboid64.json directly instructs the C++ launcher to initialize the Java Virtual Machine with an expanded memory boundary. This gives the game sufficient headroom to decompress texture atlases and compile the 32-level world without crashing.

Follow this step-by-step procedure:

1. Open your Steam client and select your Library.
2. Right-click Project Zomboid in the game list, hover your cursor over Manage, and click Browse local files.
3. Windows File Explorer will open directly to your game root directory.
4. Locate the file named ProjectZomboid64.json.
5. If file extensions are hidden, look for a file named ProjectZomboid64 with the type listed as JSON Source File.
6. Right-click ProjectZomboid64.json, select Open with, and choose Notepad.

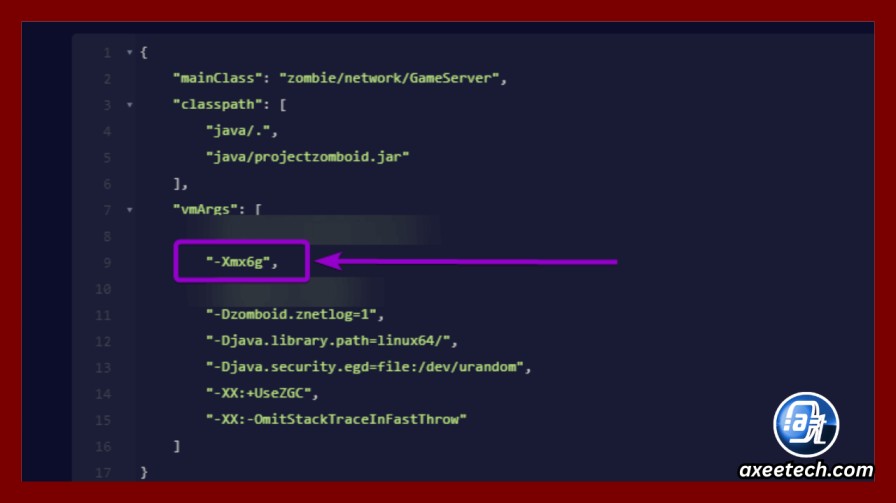

7. Locate the block labeled "vmArgs": [.
8. Find the specific line that reads "-Xmx3072m",.
9. Modify the numeric value to match your computer installed physical RAM.

Do not guess your allocation value. Allocating too much memory starves the Windows operating system and background processes, causing severe disk thrashing in the Windows pagefile.

Use the reference table below to select the optimal allocation for your hardware configuration.

Safe System RAM-Tier Allocation Table

This table details the recommended -Xmx heap values based on total installed physical RAM, balancing game performance against operating system stability.

Installed Physical RAM	Recommended -Xmx Setting	Value in Megabytes	Safety Boundary and System Impact
8 GB Total RAM	-Xmx4096m	4096 MB (4 GB)	Minimum viable allocation; leaves 4 GB for Windows, background drivers, and graphics overhead.
16 GB Total RAM	-Xmx6144m or -Xmx8192m	6144 MB or 8192 MB (6 GB or 8 GB)	Optimal balance for Build 42; 6144 MB handles vanilla, while 8192 MB accommodates high-res mod packs.
32 GB Total RAM	-Xmx12288m or -Xmx16384m	12288 MB or 16384 MB (12 GB or 16 GB)	Recommended for hosting local co-op sessions or running heavy draw-distance modifications.
64 GB+ Total RAM	-Xmx24576m	24576 MB (24 GB)	Absolute recommended ceiling; allocating higher values causes Java garbage collection latency spikes.

When editing the JSON file, preserve the surrounding quotation marks and commas. A missing quotation mark or an extra comma breaks JSON syntax validation, causing the launcher to close instantly on startup without generating a crash log.

Below is the standard configuration file before editing:

{
  "mainClass": "zombie/gameStates/MainScreenState",
  "classpath": [
    "./",
    "projectzomboid.jar"
  ],
  "vmArgs": [
    "-Djava.awt.headless=true",
    "-Dzomboid.steam=1",
    "-Dzomboid.znetlog=1",
    "-Xmx3072m",
    "-Djava.library.path=./win64/;./",
    "-cp",
    "./;projectzomboid.jar"
  ]
}

Below is the modified configuration file adjusted for a computer equipped with 16 GB of physical RAM:

{
  "mainClass": "zombie/gameStates/MainScreenState",
  "classpath": [
    "./",
    "projectzomboid.jar"
  ],
  "vmArgs": [
    "-Djava.awt.headless=true",
    "-Dzomboid.steam=1",
    "-Dzomboid.znetlog=1",
    "-Xmx6144m",
    "-Djava.library.path=./win64/;./",
    "-cp",
    "./;projectzomboid.jar"
  ]
}

Press Ctrl + S to save your changes, then close Notepad. Launch the game normally through Steam to run the client with your updated memory pool.

The Patch Overwrite Warning

Every time The Indie Stone releases an official patch or hotfix on Steam, the Steam update validation system checks all local files against remote depot manifests. Because ProjectZomboid64.json is an official game file, Steam replaces your modified file with the default version.

This update process silently resets your -Xmx setting back to -Xmx3072m. If your game begins crashing immediately after a game update, open ProjectZomboid64.json and verify that your custom memory allocation is still present.

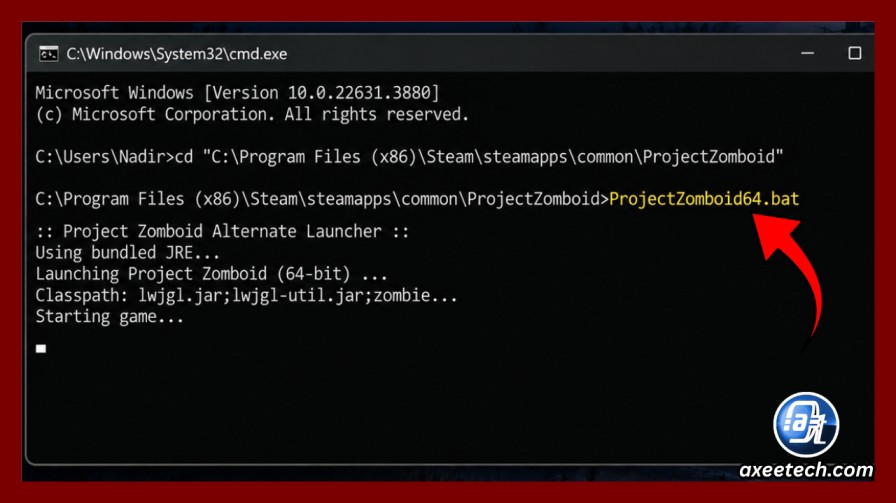

Method 2: Alternate Launch via ProjectZomboid64.bat

If editing the JSON file fails or throws syntax errors, use the game’s Alternate Launch batch script. Navigate to the game folder, open ProjectZomboid64.bat in Notepad, edit the -Xmx parameter on the java.exe execution line, and launch the game directly using the batch file.

The game root folder includes a native batch script named ProjectZomboid64.bat. This file executes the game by calling the packaged Java runtime directly from the command line, bypassing the C++ launcher wrapper entirely.

Using the batch file serves two purposes. It provides a reliable alternative when JSON parsing fails, and it keeps a command console window open behind the game that logs loading events in real time.

To configure and use the Alternate Launch batch script:

1. Open your game root folder at <SteamLibrary>\steamapps\common\ProjectZomboid\.
2. Locate the file named ProjectZomboid64.bat.
3. Right-click ProjectZomboid64.bat and select Edit or open it with Notepad.
4. Locate the line that invokes the Java runtime:".\jre64\bin\java.exe" -Djava.awt.headless=true -Dzomboid.steam=1 -Xmx3072m ...
5. Locate the -Xmx3072m argument on this execution string.
6. Change -Xmx3072m to your chosen value, such as -Xmx6144m or -Xmx8192m.
7. Press Ctrl + S to save the batch script, then close Notepad.

You can now start the game by double-clicking ProjectZomboid64.bat directly in your file browser.

Alternatively, you can launch the script through Steam. When you click Play on Project Zomboid in Steam, a pop-up window asks you to select your launch mode.

Choose “Alternate Launch” and click Play. Steam will execute ProjectZomboid64.bat, applying your updated memory allocation and displaying a black diagnostic console window that monitors asset compilation.

Method 3: Safe Cache Purge (Without Losing Your Saves)

To clear corrupted legacy caches without deleting your single-player characters, delete only the Lua and logs subfolders inside C:\Users<YourUsername>\Zomboid. Never delete the Saves directory. Deleting options.ini is also safe and resets your graphics settings if a resolution conflict causes black screens.

Many community forum posts advise players experiencing startup crashes to “delete your entire Zomboid folder.” This advice is destructive.

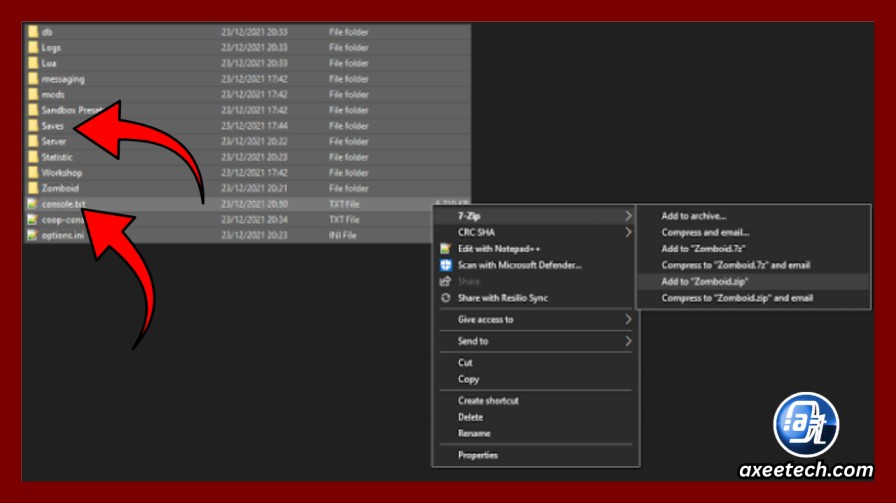

The folder located at %USERPROFILE%\Zomboid contains both temporary compiled cache files and all of your actual single-player and multiplayer character saves. Deleting the entire directory permanently destroys your worlds, characters, and custom sandbox presets.

Before touching any files in your user profile, create a secure backup of your progression data:

1. Press Windows Key + R, type %USERPROFILE%\Zomboid, and click OK.
2. Locate the folder named Saves.
3. Right-click Saves, select Copy, navigate to your desktop, and click Paste.
4. Your characters and world maps are now safely backed up outside the game directory.

Once your backup is complete, you can safely remove corrupted cache files that cause startup crashes. Build 42 frequently fails to launch if compiled Lua scripts or texture metadata from Build 41 remain cached in your user profile.

Use the audit table below to determine which subfolders are safe to clear.

%USERPROFILE%\Zomboid Directory Safety Audit

This table outlines the contents of each directory inside the Zomboid user profile, indicating which folders can be cleared safely and which must be preserved.

Folder or File Name	Subdirectory Contents	Safe to Delete?	Consequence of Deleting Directory
Saves\	All single-player and multiplayer world maps, survivor inventories, and bases	NO	Permanently deletes all character progression, maps, and saved survival worlds.
Lua\	Cached compiled scripts from prior versions and active mod hooks	YES	Clears corrupted script caches; the game cleanly regenerates default Lua files on boot.
logs\ and console.txt	Diagnostic crash dumps, connection traces, and error logs	YES	Clears disk space; the game automatically creates a fresh console.txt upon next launch.
options.ini	Stored user preferences for resolution, fullscreen mode, and audio volume	YES	Resets graphics and controls to factory defaults; resolves black-screen resolution locks.
mods\	Locally installed non-Workshop mod archives and overrides	CAUTION	Disables manually installed mods; does not affect mods installed via Steam Workshop.
Server\ and db\	Dedicated server settings, player whitelists, and SQLite account databases	NO	Wipes local multiplayer server configurations and registered player account data.

To execute a safe cache purge:

1. Open %USERPROFILE%\Zomboid\.
2. Delete the Lua subfolder.
3. Delete the logs subfolder.
4. Delete the text document console.txt.
5. If your crash presents as a black screen with audio, delete options.ini to reset your display output to 1080p windowed mode.
6. Launch Project Zomboid to let the engine rebuild fresh cache files.

Also Read: Project Zomboid Map Locations

Still Crashing? Non-Memory Build 42 Startup Failures

If your client continues to crash after increasing the Java heap in ProjectZomboid64.json, your system is encountering a secondary hardware or software conflict. Address these common non-memory launch failures in sequence.

1. Clear Incompatible Build 41 Mods

Build 42 alters internal Java class paths and reorganizes core game item IDs. Running mods designed for Build 41 will crash the game during initial engine initialization.

Even if you have not manually enabled mods in the menu, active Steam Workshop subscriptions can hook into the startup sequence.

To test for mod conflicts, launch the game in safe mode:

1. Open your Steam Library.
2. Right-click Project Zomboid and select Properties.
3. In the General tab, locate the Launch Options text box.
4. Enter -safemode into the box.
5. Launch the game.

The -safemode flag instructs the game to boot using default textures while ignoring all active Workshop mods. If the game launches successfully, an outdated mod is causing the crash.

Unsubscribe from obsolete mods in the Steam Workshop, then delete the mods folder located in %USERPROFILE%\Zomboid\.

2. Resolve OpenGL Graphics Driver Access Violations

Project Zomboid uses the Lightweight Java Game Library (LWJGL) to interface with your GPU through the OpenGL graphics API. Outdated graphics drivers often fail when compiling the 3D depth buffer required for 32-level verticality.

When this occurs, console.txt logs an EXCEPTION_ACCESS_VIOLATION pointing to nvoglv64.dll (NVIDIA) or atig6pxx.dll (AMD).

To resolve OpenGL access violations:

1. Download the latest standalone driver package from your GPU manufacturer’s website.
2. Download Display Driver Uninstaller (DDU).
3. Restart your computer into Windows Safe Mode.
4. Run DDU to completely remove existing graphics driver registries and shader caches.
5. Reboot into normal Windows mode and install the clean driver package.
6. Restart your computer once more before launching the game.

3. Verify Integrity of Game Files on Steam

Missing or corrupted game archives will trigger an immediate crash when the engine attempts to reference an incomplete texture asset. Steam includes an automated verification utility to repair damaged installations.

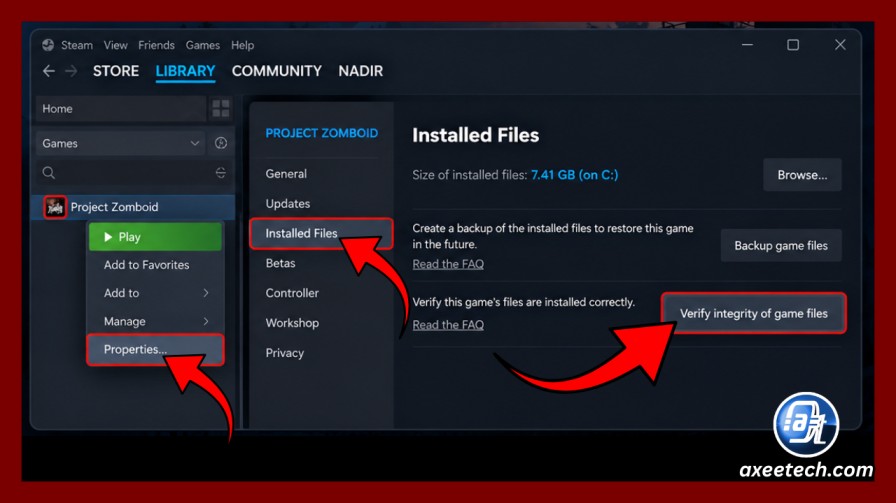

To verify your installation:

1. Open your Steam Library.
2. Right-click Project Zomboid and select Properties.
3. Select the Installed Files tab from the left menu.
4. Click the Verify integrity of game files button.
5. Wait for Steam to validate all local files against remote Valve checksums.
6. If corrupted files are detected, Steam will download fresh copies automatically.

Remember that verifying game files replaces ProjectZomboid64.json with the default version. After verification finishes, reopen ProjectZomboid64.json and confirm your -Xmx memory allocation is configured correctly.

Frequently Asked Questions

Why does Project Zomboid Build 42 crash on startup?

Build 42 crashes on startup because the game engine loads expanded 32-level vertical maps and high-resolution texture packs that exceed the hardcoded 3072 MB Java heap limit. The Java Virtual Machine exhausts its allocated memory and aborts execution with an OutOfMemoryError before the main menu loads.

How do I allocate 8GB of RAM to Project Zomboid?

Open ProjectZomboid64.json inside your Project Zomboid installation directory using Notepad. Locate the line "-Xmx3072m", within the "vmArgs" array, change it to "-Xmx8192m", or "-Xmx8g", save the file, and restart the game.

Can I allocate too much RAM to Project Zomboid?

Yes, allocating more than 75 percent of your total physical RAM starves the Windows operating system and background processes, causing severe disk thrashing. Additionally, setting the Java heap above 24 GB causes prolonged garbage collection pauses that result in noticeable in-game stutter.

Does deleting the Zomboid folder delete my saves?

Yes, deleting the entire %USERPROFILE%\Zomboid directory will permanently delete the Saves folder, wiping all of your single-player worlds and multiplayer character progression. You should only delete the Lua and logs subfolders when clearing cache files.

Why did my ProjectZomboid64.json settings reset?

Steam automatically replaces modified game files with default versions whenever an official patch or hotfix is deployed. When Steam updates Project Zomboid, it overwrites ProjectZomboid64.json, resetting your -Xmx allocation back to the default 3072 MB cap.

Do Steam launch options work for Project Zomboid?

No, entering -Xmx or -maxMem arguments into Steam Launch Options does not allocate memory to the game. The native launcher ProjectZomboid64.exe reads memory parameters exclusively from ProjectZomboid64.json and ignores Steam launch arguments for Java Virtual Machine initialization.
