How to Connect BeatX to Vizio DH204 Series TV: 3 Updated Methods for 2026

You can connect BeatsX wireless earphones to a Vizio DH204 series TV using direct Bluetooth pairing (if your TV supports Bluetooth audio output), a Bluetooth audio transmitter via the optical or AUX port, or a wired 3.5mm connection.

First, check whether your DH204 has Bluetooth audio output — many Vizio D-Series TVs use Bluetooth only for app control, not audio. This guide covers all three methods and every fix.

Before You Start: Check If Your Vizio DH204 Has Bluetooth Audio

Not all Vizio TVs with Bluetooth can output audio wirelessly. Many Vizio D-Series models include Bluetooth Low Energy (BT LE) only for the SmartCast mobile app connection — not for pairing headphones or speakers. Before following Method 1, confirm your specific DH204 model supports Bluetooth audio output.

The Vizio DH204 series falls within Vizio’s budget D-Series lineup. Depending on the specific year and sub-model, Bluetooth audio support varies. The quickest way to confirm is to check the TV settings menu directly — no manual required.

If the Bluetooth audio option is absent from your settings menu, your DH204 does not support direct Bluetooth audio pairing. Skip Method 1 entirely and use Method 2 (Bluetooth transmitter) or Method 3 (wired connection) instead. Both alternatives work on every Vizio model regardless of built-in Bluetooth.

The table below shows all three methods at a glance. Use it to identify which method applies to your situation before following any steps.

Also Read: SentinelOne Console Connectivity Offline​

Method	Works If	Best For	Lip-Sync Delay?
Method 1: Direct Bluetooth pairing	DH204 has Bluetooth audio output option in Settings	Convenience — no extra hardware	Yes — noticeable delay when watching video (Beats limitation)
Method 2: Bluetooth transmitter (optical/AUX)	Any Vizio DH204 regardless of built-in Bluetooth	Best audio sync — use aptX-LL transmitter for zero lag	Minimal to none with aptX-LL transmitter
Method 3: Wired 3.5mm connection	DH204 has a 3.5mm headphone jack output	No wireless needed — simplest possible setup	Zero delay — wired is always sync-perfect

Steps to check for Bluetooth audio support:

1. Press the Menu or Settings button on your Vizio DH204 remote
2. Navigate to System or Network & Accessories
3. Look for a Bluetooth option in the submenu
4. If Bluetooth is present: navigate to it and confirm it shows a Pair Device or Bluetooth Headphones option
5. If no Bluetooth option appears: your TV uses BT LE for SmartCast only — proceed to Method 2 or 3

Important: BeatsX and Lip-Sync Delay on TVs

Before connecting BeatsX to any TV, you need to know about a confirmed hardware limitation. BeatsX wireless earphones do NOT support the aptX Low Latency (aptX-LL) Bluetooth codec. This means audio transmitted over Bluetooth will lag behind the video by approximately 100 to 300 milliseconds — a noticeable delay when watching any video content.

This is not a Vizio TV problem or a BeatsX defect. It is a codec compatibility issue inherent to all Beats products on all non-Apple TVs. Apple designed the W1 chip in BeatsX for seamless pairing with Apple devices, not for low-latency TV audio.

If you plan to watch video content (movies, TV shows, gaming) and lip-sync accuracy matters, use Method 2 with an aptX Low Latency Bluetooth transmitter instead of direct Bluetooth. The transmitter handles the codec translation and delivers near-zero lag. If you only need audio for music or background listening, direct Bluetooth via Method 1 works fine.

Beats products including BeatsX do NOT support aptX Low Latency. This means direct Bluetooth will produce audio lag when watching video on any TV. If you watch movies or TV shows, use Method 2 with an aptX-LL transmitter. You can also check your Vizio TV’s Audio Settings for an Audio Delay or Lip Sync adjustment to compensate.

Method 1 — Connect BeatsX Directly via Vizio DH204 Bluetooth

Direct Bluetooth pairing is the simplest method and requires no extra hardware. It works if your Vizio DH204 has confirmed Bluetooth audio output in the check above. The key is putting BeatsX into manual pairing mode — BeatsX uses Apple’s W1 chip which auto-connects to Apple devices, but on a Vizio TV you must activate pairing mode manually.

BeatsX pairing mode: hold the power button while the earphones are OFF for 5 seconds until the LED indicator starts flashing. Once the LED flashes, BeatsX is visible to any Bluetooth device — including your Vizio TV. If BeatsX was recently connected to another device such as an iPhone, that previous connection may prevent it from appearing on the TV until you clear the pairing history.

After the TV finds and pairs with BeatsX, one additional step is required that most users miss: you must manually switch the TV’s audio output to the Bluetooth device. The TV defaults to its built-in speakers even after a successful Bluetooth pairing. Skipping this step — a classic example of device access problems caused by wrong settings path — is the most common reason users think the connection failed.

Steps for Method 1 — Direct Bluetooth:

1. Turn your BeatsX earphones OFF completely
2. Press and hold the power button on BeatsX for 5 seconds until the LED starts flashing — BeatsX is now in pairing mode
3. On your Vizio DH204 remote, press Menu or Settings
4. Navigate to System → Bluetooth (or Network & Accessories → Bluetooth Settings)
5. Turn Bluetooth ON if not already enabled
6. Select Add Device or Search for Devices
7. When BeatsX appears in the device list, select it to pair — the LED on BeatsX will stop flashing when connected
8. After pairing, go to Settings → Sound → Sound Output
9. Select BeatsX or the Bluetooth device from the list — this switches audio from TV speakers to BeatsX
10. Play audio from the TV and confirm you hear it through BeatsX

Critical step most users miss: Pairing your BeatsX to the TV does NOT automatically switch the audio output. After pairing, you MUST go to Settings → Sound → Sound Output and select the BeatsX device. If you skip this step, the TV continues playing through its built-in speakers and your BeatsX will appear connected but silent.

Method 2 — Connect BeatsX via Bluetooth Transmitter (Best for No-Lag Video Watching)

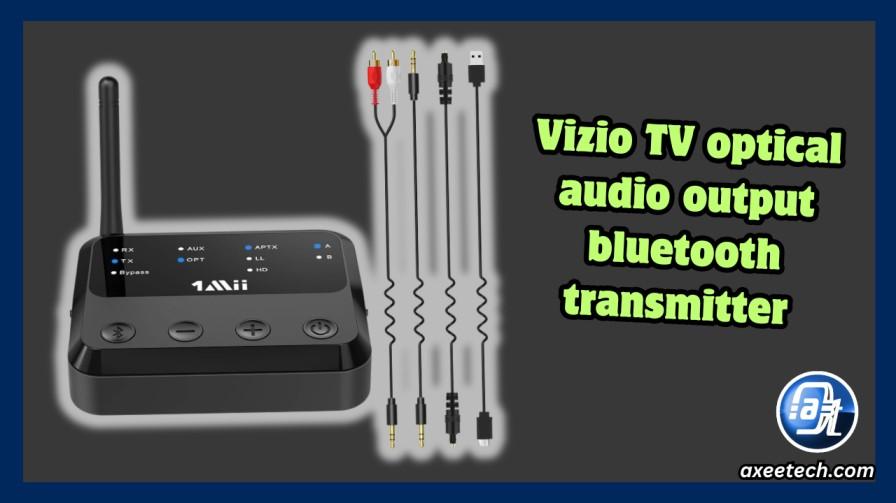

Method 2 works on every Vizio DH204 model regardless of whether the TV has built-in Bluetooth. A Bluetooth audio transmitter plugs into the TV’s audio output port and sends audio wirelessly to your BeatsX. This method also solves the lip-sync delay problem — transmitters with aptX Low Latency deliver near-zero audio lag even with Beats earphones.

The Vizio DH204 series includes one or more of these audio output ports: Digital Optical (TOSLINK), 3.5mm AUX headphone jack, or RCA (red/white) jacks. The optical port is the preferred connection point — it carries uncompressed digital audio and produces the cleanest sound. If your DH204 does not have optical, the 3.5mm AUX jack works equally well.

When using the optical port, you must change one critical TV setting or the transmitter will receive no audio signal. Navigate to: Settings → Audio → Digital Audio Output → set to PCM. Vizio TVs default to Dolby Digital for optical output, which many Bluetooth transmitters cannot decode. Switching to PCM ensures the transmitter receives a compatible audio signal.

Recommended transmitters with aptX-LL for BeatsX: Avantree Audikast Plus, Avantree Orbit, or any transmitter labeled aptX Low Latency. Budget option: any basic Bluetooth 5.0 transmitter for music-only use. For gaming, streaming, or movie watching, always choose aptX-LL certified.

Steps for Method 2 — Bluetooth transmitter via optical:

1. Connect the Bluetooth transmitter to the Vizio DH204 optical audio output port using a TOSLINK optical cable
2. Connect the transmitter to power (via USB or included adapter)
3. On your Vizio DH204: go to Settings → Audio → Digital Audio Output → select PCM (NOT Dolby Digital or DTS)
4. Put the transmitter into Bluetooth pairing mode (refer to its specific user manual)
5. Turn your BeatsX earphones OFF completely
6. Press and hold the BeatsX power button for 5 seconds until the LED flashes — BeatsX is now in pairing mode
7. Keep BeatsX within 3 feet of the transmitter during first-time pairing
8. Wait for the transmitter LED to turn solid and the BeatsX LED to stop flashing — both devices are now connected
9. Play audio from your TV and test through BeatsX

Optical audio setting must be PCM, not Dolby Digital. Most Vizio TVs default to Dolby Digital for optical output. If your transmitter receives no signal or produces no sound, this is almost always the cause. Go to Settings → Audio → Digital Audio Output and change the setting to PCM before starting pairing.

Steps for Method 2 alternative — via 3.5mm AUX jack:

1. Connect a 3.5mm male-to-male audio cable from the Vizio DH204 headphone/AUX output to the AUX input on the Bluetooth transmitter
2. Power the transmitter on
3. Follow steps 4–9 from the optical method above

Method 3 — Connect BeatsX to Vizio DH204 via Wired 3.5mm

BeatsX earphones include a RemoteTalk cable — a wired 3.5mm cable with inline controls. If your Vizio DH204 has a 3.5mm headphone output jack, you can connect directly with this cable. The wired method delivers zero audio delay, perfect lip-sync, and consistent audio quality regardless of wireless interference.

The wired method is ideal for users who occasionally need headphone audio without setting up a transmitter. Note that the RemoteTalk cable’s inline controls (volume, play/pause) may not function when connected to a TV — use the Vizio remote for volume control instead.

Some Vizio D-Series TVs have removed the 3.5mm headphone jack on newer models. If your DH204 does not have a 3.5mm audio output, an RCA-to-3.5mm adapter (approximately $6–10) allows connection through the RCA ports if present.

Steps for Method 3 — Wired:

1. Locate the 3.5mm headphone/AUX output port on the back or side of your Vizio DH204
2. Connect the BeatsX RemoteTalk cable (3.5mm plug end) into the TV’s audio output jack
3. Connect the other end into BeatsX
4. On the Vizio DH204, press Settings → Sound → Sound Output → select Headphones or External Speakers
5. Play TV audio and confirm sound through BeatsX
6. Use the Vizio remote to control volume

BeatsX Not Connecting to Vizio DH204 — Troubleshooting

Most BeatsX connection failures on Vizio TVs trace back to one of five root causes — much like common device pairing error codes and their fixes where a single misconfigured setting blocks the entire connection path. The five causes are: BeatsX not in manual pairing mode, a previous device blocking the pairing slot, the TV still outputting audio through built-in speakers after a successful connection, wrong optical audio format (Dolby instead of PCM), or a BeatsX firmware/pairing conflict requiring a full reset.

The BeatsX W1 chip creates a specific challenge. It automatically reconnects to the last paired Apple device whenever that device is in range. If your iPhone is nearby, BeatsX may jump back to the phone instead of staying on the Vizio TV. Keep your phone’s Bluetooth turned OFF during TV pairing and watching. This type of connection failure caused by device handshake issues is one of the most common causes of phantom disconnections in Bluetooth audio setups.

If all standard fixes fail, a full BeatsX factory reset clears all stored pairing history and starts fresh. After resetting, follow the Method 1 or Method 2 steps from the beginning. The reset takes about 15 seconds and does not damage the device.

Problem	Most Likely Cause	Fix
BeatsX not appearing in TV Bluetooth list	BeatsX not in manual pairing mode	Turn BeatsX OFF, hold power button 5 seconds until LED flashes, then search on TV
BeatsX pairs but no audio through earphones	TV audio output still set to TV speakers	Go to Settings → Sound → Sound Output → select BeatsX or Bluetooth device
TV only found BeatsX momentarily then lost it	iPhone or other Apple device stealing the connection	Turn off Bluetooth on nearby Apple devices before pairing with TV
Optical transmitter receives no signal	TV digital audio output set to Dolby Digital or DTS	Go to Settings → Audio → Digital Audio Output → change to PCM
Noticeable audio lag watching video	BeatsX lacks aptX-LL codec — Bluetooth inherent delay	Use aptX-LL transmitter (Method 2) or check TV audio delay setting in Settings → Sound
BeatsX shows connected but drops instantly	Old pairing conflict on BeatsX	Full BeatsX reset: hold power 10 seconds → LEDs blink white → one blinks red → re-pair
Vizio DH204 has no Bluetooth option in settings	TV has BT LE only (for SmartCast app) — no audio Bluetooth	Skip to Method 2 (transmitter) or Method 3 (wired)
BeatsX keeps reconnecting to iPhone mid-watch	W1 chip auto-reconnects to nearest Apple device	Disable Bluetooth on your iPhone while watching TV with BeatsX

How to Reset BeatsX for Pairing Problems

If BeatsX refuses to pair after following all steps, a full factory reset erases all stored Bluetooth connections and resolves pairing conflicts. The reset takes approximately 15 seconds and restores BeatsX to its out-of-box state. Software and firmware compatibility errors like corrupted pairing histories are one of the most reliable targets for a factory reset — it removes the conflict entirely rather than patching around it.

After resetting, BeatsX will be in fresh pairing mode — the LED will flash immediately when you power on. Follow Method 1 or Method 2 steps from the beginning to establish a clean new connection with your Vizio DH204.

The BeatsX reset procedure also resolves issues where the earphones appear to connect but instantly disconnect, connect with distorted audio, or cannot be detected by any device.

1. With BeatsX turned ON or charged, press and hold the power button for 10 seconds
2. Watch the fuel gauge LED indicators — they will blink white in sequence
3. Then one LED will blink red — this confirms the reset is complete
4. Release the power button
5. BeatsX is now in fresh pairing mode — the LED will flash, indicating it is ready to pair with a new device
6. Follow Method 1 or Method 2 steps to pair with your Vizio DH204

Pairing still fails after reset? Remove the BeatsX from your Vizio TV’s paired device list first (Settings → Bluetooth → select BeatsX → Forget Device), then put BeatsX in pairing mode, then search again. Removing the old pairing entry from the TV prevents conflicts with the new pairing attempt.

Frequently Asked Questions

The questions below address the most common points of confusion about connecting BeatsX to a Vizio DH204 series TV, based on confirmed device specifications and real user reports.

Does the Vizio DH204 series support Bluetooth audio output?

It depends on the specific sub-model and year. Some DH204 models support Bluetooth audio pairing while others only include Bluetooth LE for the SmartCast app. To check, press Settings on your Vizio remote, go to System or Network & Accessories, and look for a Bluetooth Headphones or Pair Device option. If absent, use a Bluetooth transmitter instead.

Why does my BeatsX have audio delay when connected to the Vizio TV?

BeatsX does not support the aptX Low Latency codec. This means Bluetooth transmission introduces an audio lag of 100–300ms when watching video. To fix this, use a Bluetooth transmitter that supports aptX-LL connected to your TV’s optical or AUX output. You can also try adjusting the TV’s audio delay setting under Settings → Sound to compensate.

Why does BeatsX keep disconnecting from my Vizio TV?

BeatsX uses Apple’s W1 chip, which automatically reconnects to the last paired Apple device when it is within range. If your iPhone is nearby, BeatsX will abandon the TV connection and reconnect to the phone. Turn Bluetooth off on your iPhone and other Apple devices while using BeatsX with your Vizio TV.

Can I connect BeatsX to my Vizio DH204 if it has no Bluetooth?

Yes. Use Method 2: a Bluetooth audio transmitter connected to the TV’s optical audio output (set to PCM format) or the 3.5mm AUX jack. The transmitter adds Bluetooth audio transmission to any TV regardless of its built-in Bluetooth capabilities.

BeatsX is paired but no sound comes through — what is wrong?

This is the most common issue after pairing. After connecting BeatsX via Bluetooth, you must manually switch the TV’s audio output to the Bluetooth device. Go to Settings → Sound → Sound Output → select BeatsX or the Bluetooth device name. The TV defaults to its built-in speakers even after a successful Bluetooth pairing.

Can I use the BeatsX RemoteTalk cable with a Vizio TV?

Yes. Plug the RemoteTalk cable’s 3.5mm connector into the Vizio DH204’s headphone output jack and the other end into BeatsX. Volume and playback controls on the inline remote may not respond on TV inputs — use your Vizio remote for volume control instead.
